i-SLIDE HOME AUTOMATION

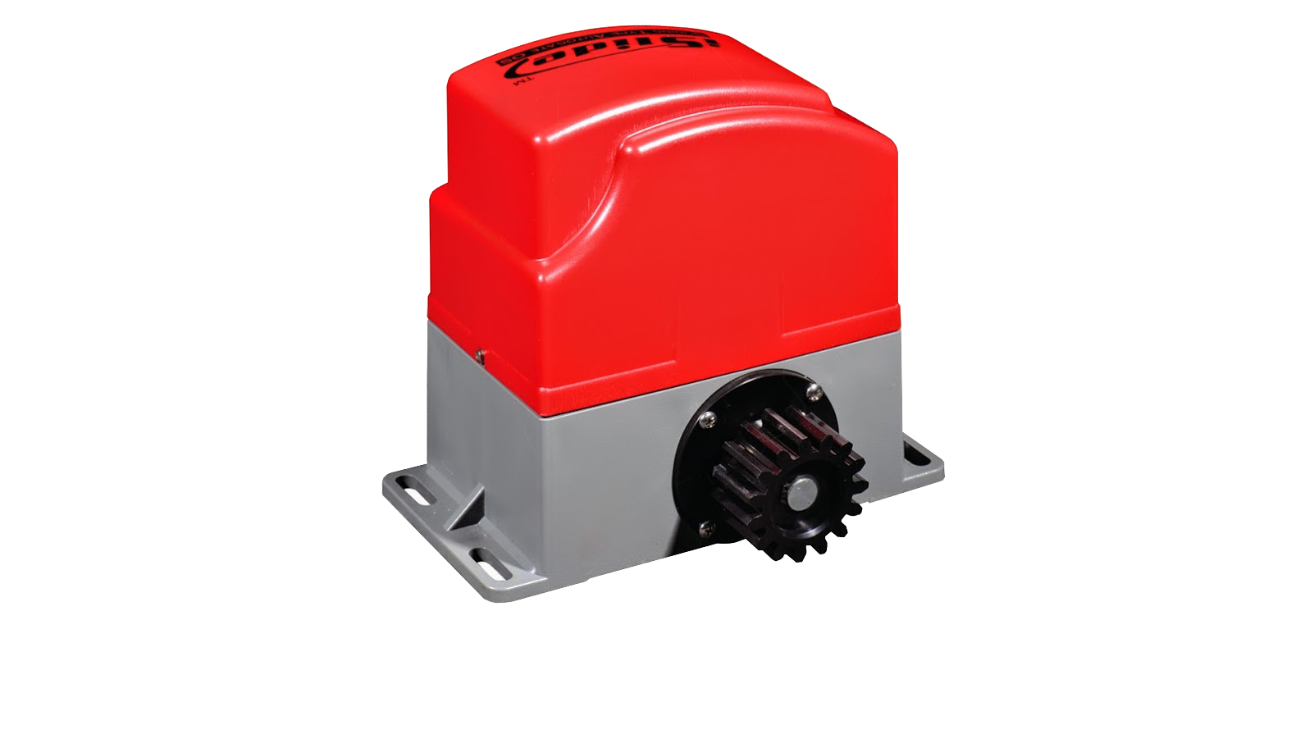

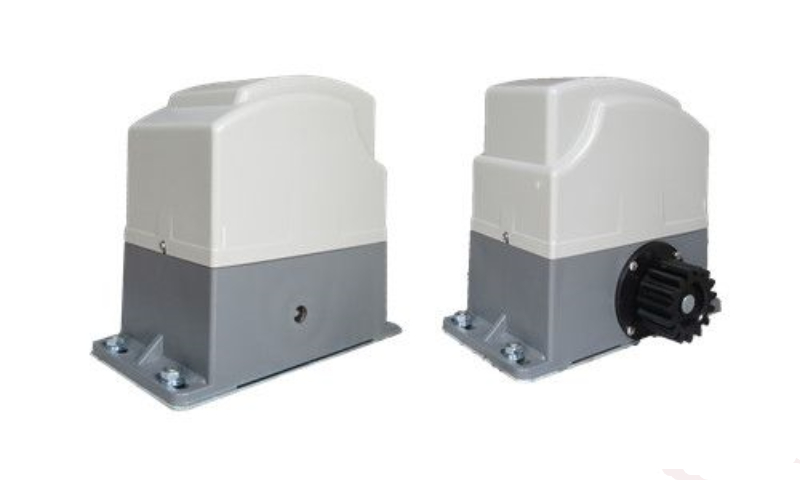

Our Automatic Sliding Gate automation system for residential and commercial
application offers safety and operational features for all gates up to 600kg in weight.
The system is designed to be durable and can be operated on dual power
supply (AC & DC).
| ITEM | SLIDING GATE SPESIFICATION |
| power supply | AC 220-240V 50HZ, single phase |
| motor power supply | 24 VDC |
| motor speed | 28000rpm max |
| ambient operating temperature | -20 'c to 120 'c |
| accessory power supply | 12VDC / 24VDC |
| power consumpation | 80 watts |
| maximum sliding gate gate weight | 600kg |
| sliding gate speed | 12 meter/s |
| safety cluth | auto-reverse electronic counter technology |
| protection class | IP55 |
| remote controller | 2-channel, 330Mhz UHF |
| manual option | special release during power failure |
The ANTI-CRUSCHING electronik system automatically inverts or halts the gate movement if the
presence of small object is detect in its track.
Operation event when there is no electric power.
IP is also designed to be powered with emergency batteries that can be incorporated
into the automation system.
