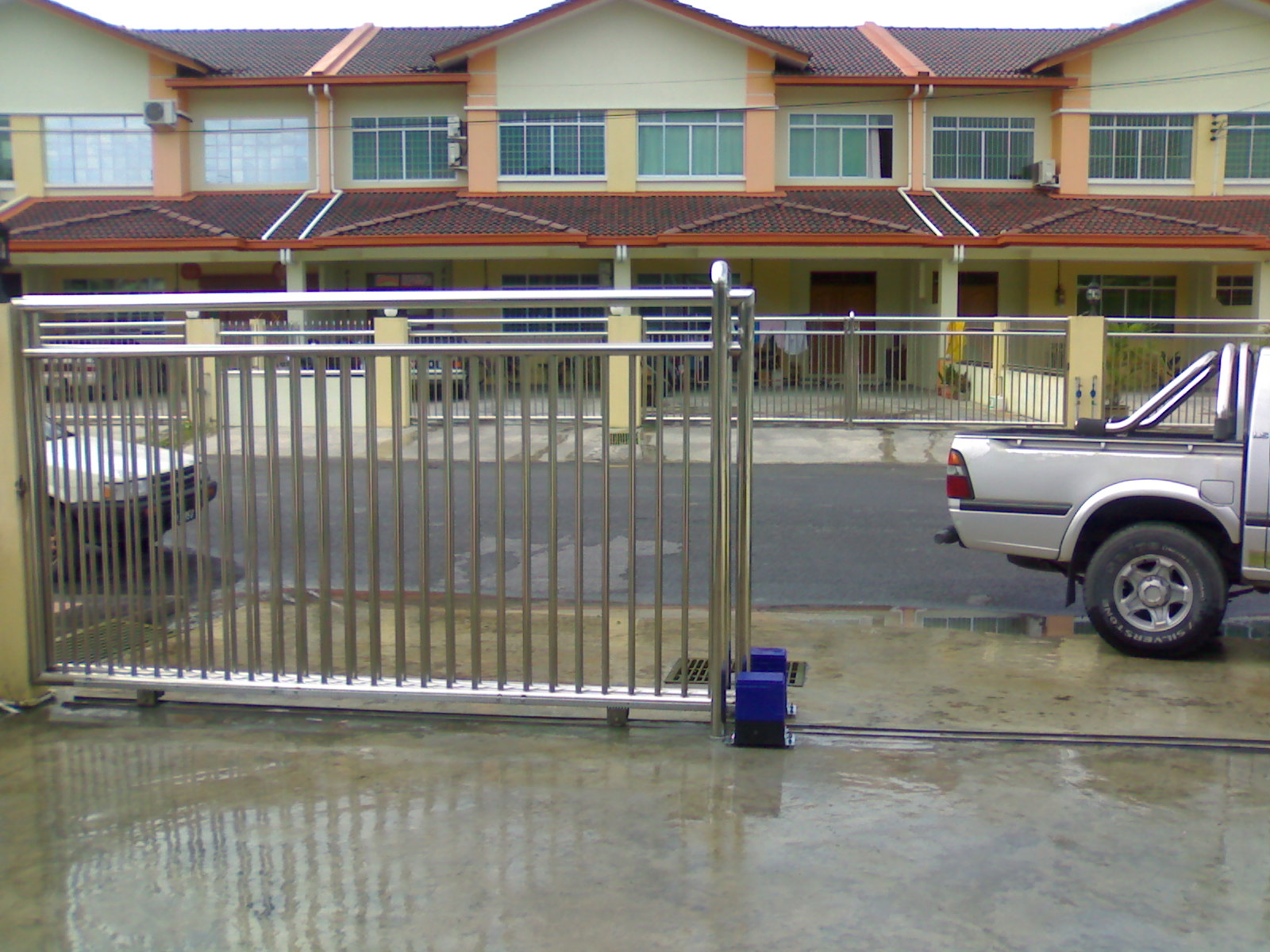

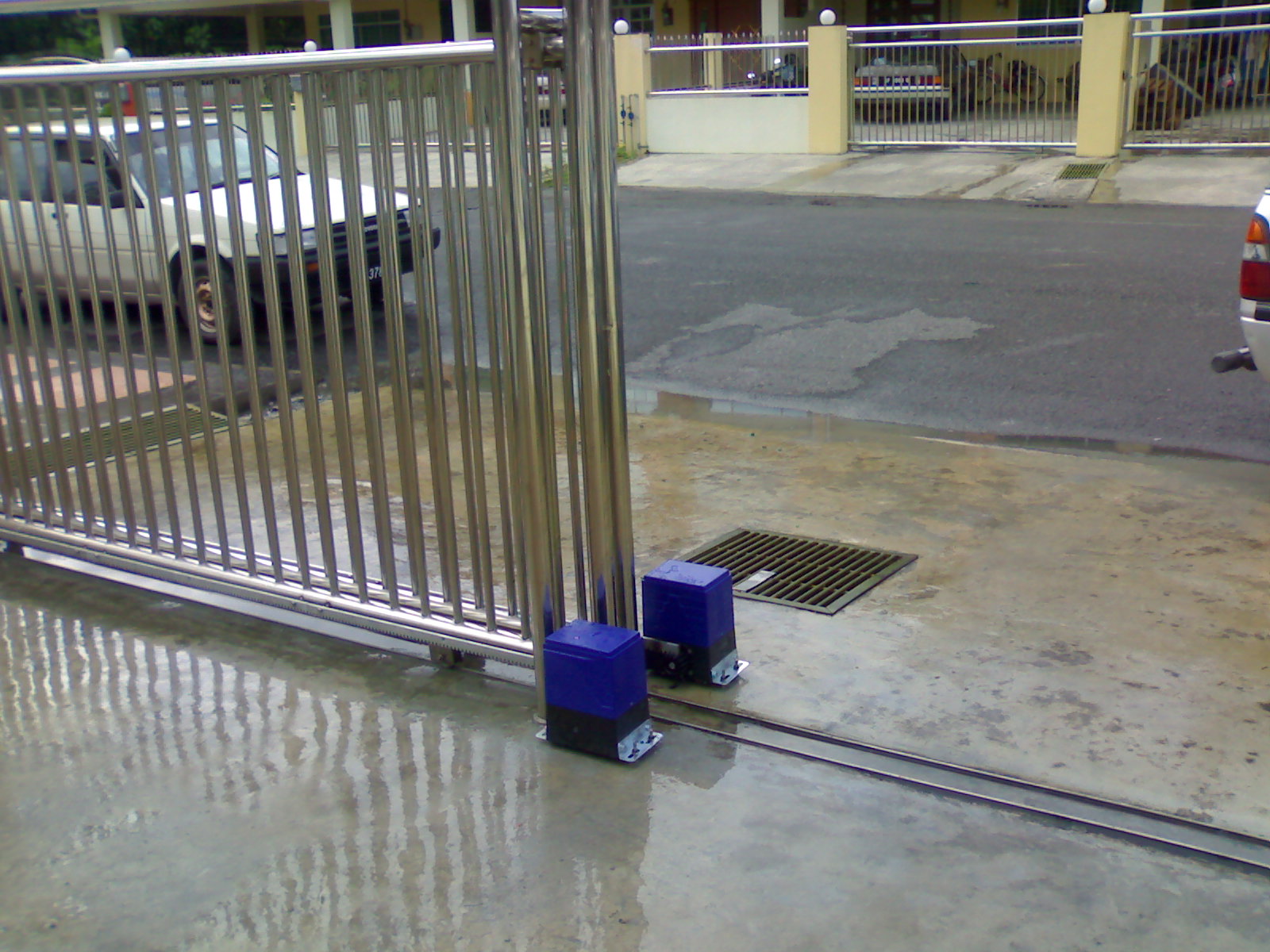

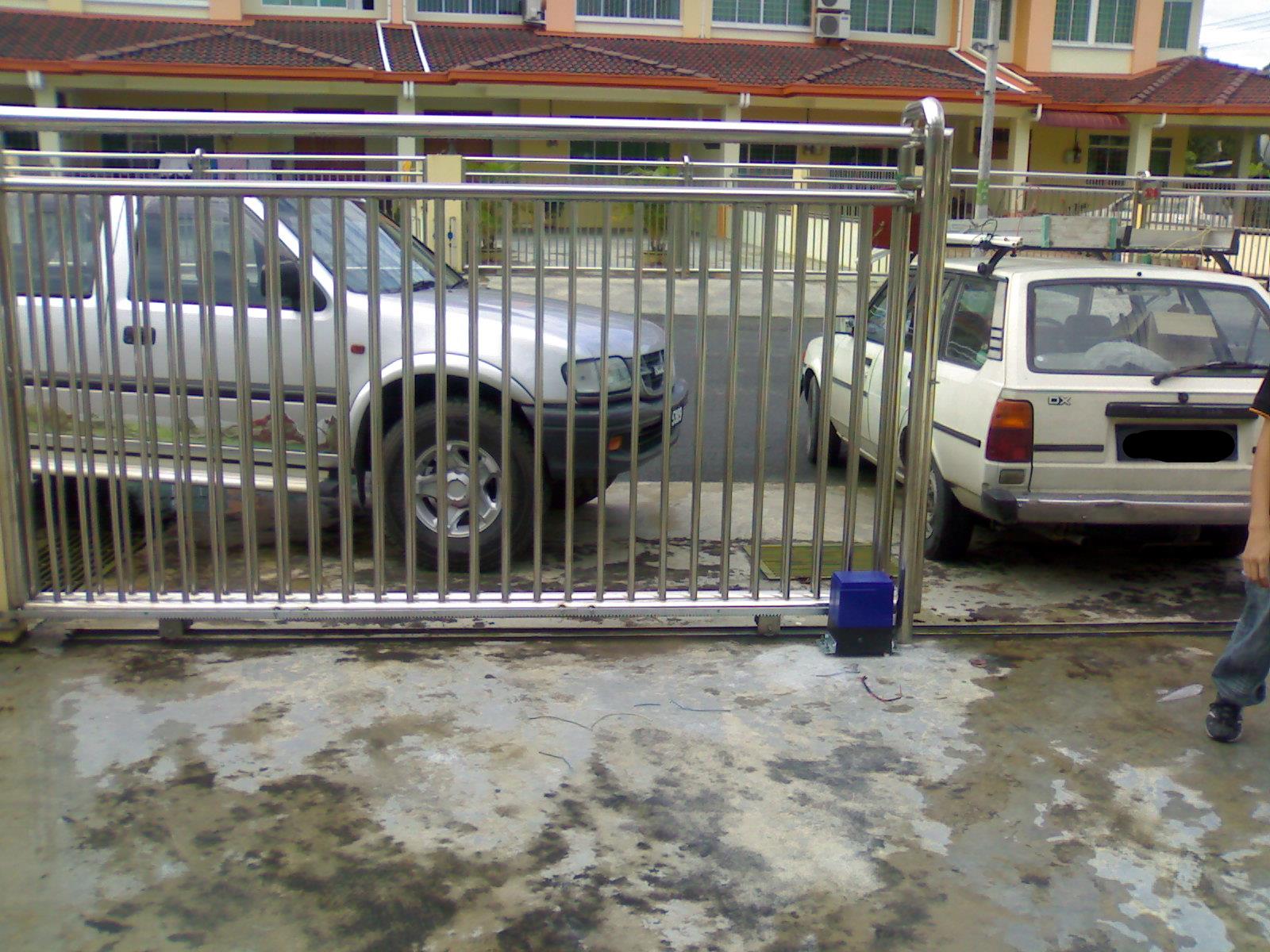

Automatic Sliding Gate (The Ideal Choice)
Our Automatic Sliding Gate automation system for residential and commercial applications offers safety and operational features for all gates up to 600kg in weight.
The system is designed to be durable and can be operated on dual power supply (AC & DC).


  Why we are using 24VDC motor for our system:
1. To guarantee continuous operation during main power supply failure by incorporation DC UPS into the automation.
2. For ease of adjusting the gate opening and closing speed for smoother and safer movement.
3. For extra safety: an amperometric device built in the electronic control board, automatically halting gate
  movement if abstacles are detected in its path.
4. For frequent and intensive use of gate as motor’s low operating voltage (24VDC) dissipates heat,
  if allowing continuous cycles.
5. For much more safer application as all motos and accessories operate at low voltage (24VDC)


Convenience and safety in a single touch
The key holder type remote control unit is designed to be user friendly for easy one-touch operation and is available in different sizes, frequencies and performance depending on your requirements.
The command code transfer form transmitter to receiver is programmable with the RADIO-CODE AUTO-LEARNING features.
The ANTI-CRUSHING electronic system automatically inverts or halts the gate movements if the presence of small objects are detected in its tracks.
Power with control and safety
The automatic sliding gate system comes equipped with a new generation electronic control board that provides better safety features :
complete AUTOOTEST of all the safety devices in the system prior to activating the motor.
accessories such as lightings each time the “operation “ command is activated.
gate’s PARTIAL OPENING to optimize the gate’s opening according to user’s requirements such as selecting the passage of a vehicle or a person for “entry only” or “exit only”
It is suggested that in addition to safety regulations currently in forced, the installation of any devices that may guarantee extra safety and reliability to the users are recommended.

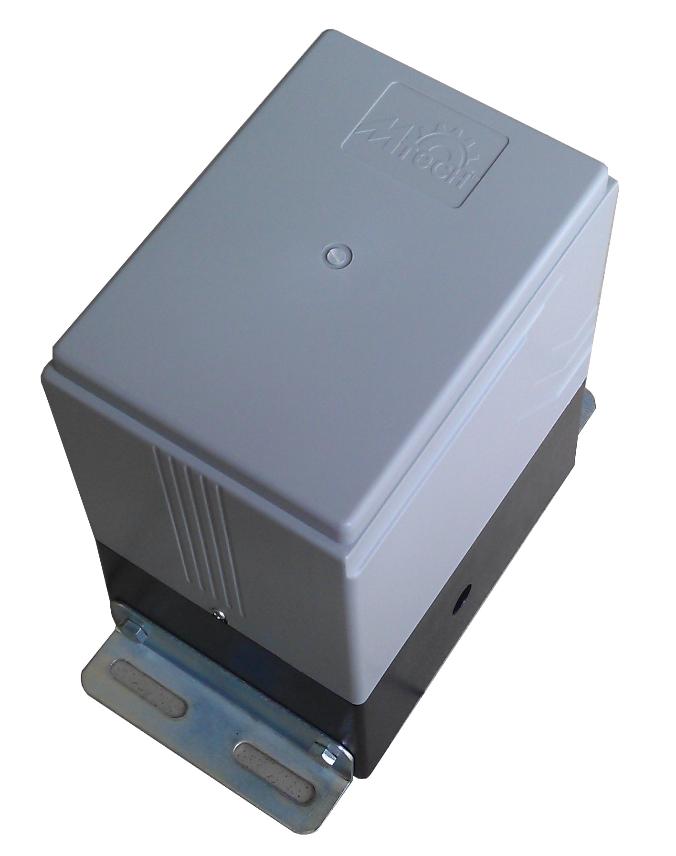

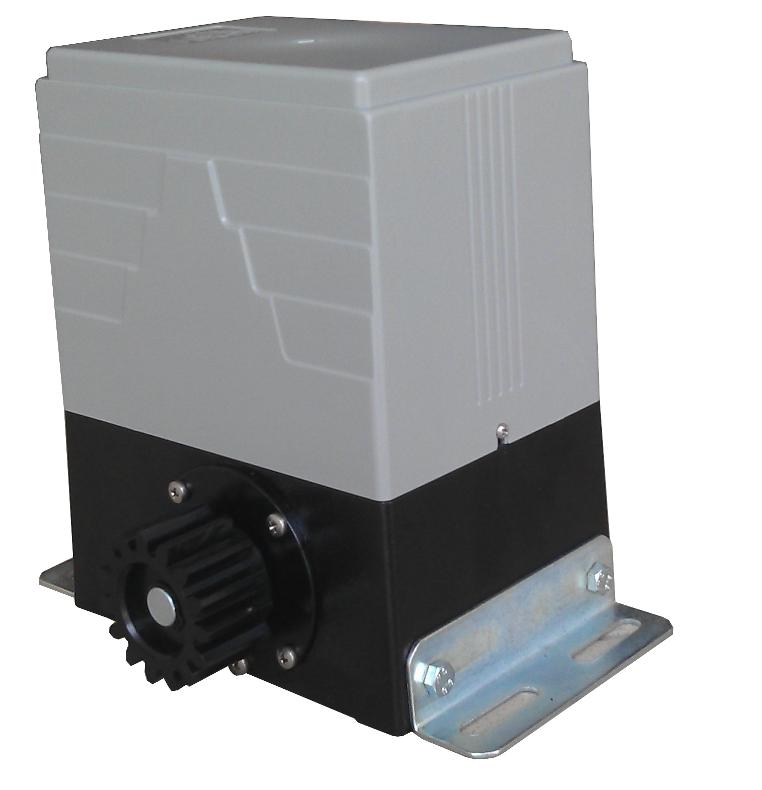

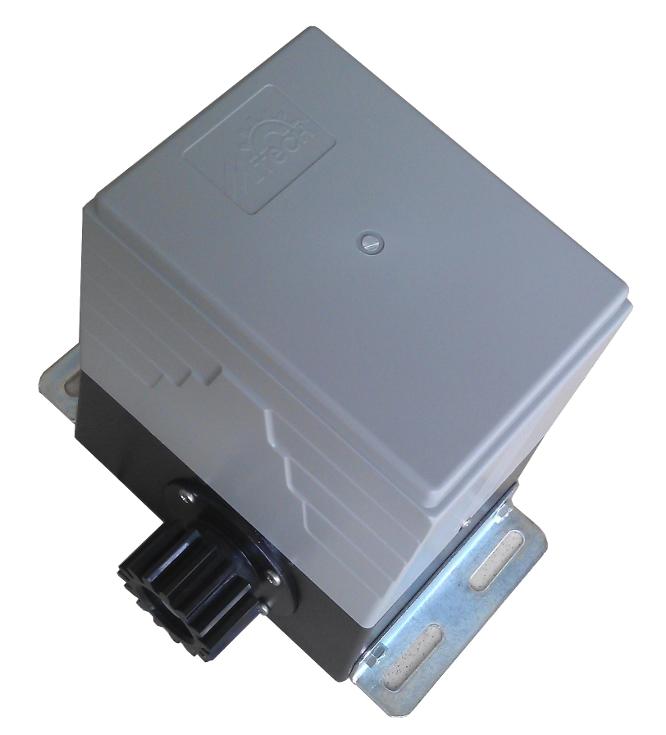

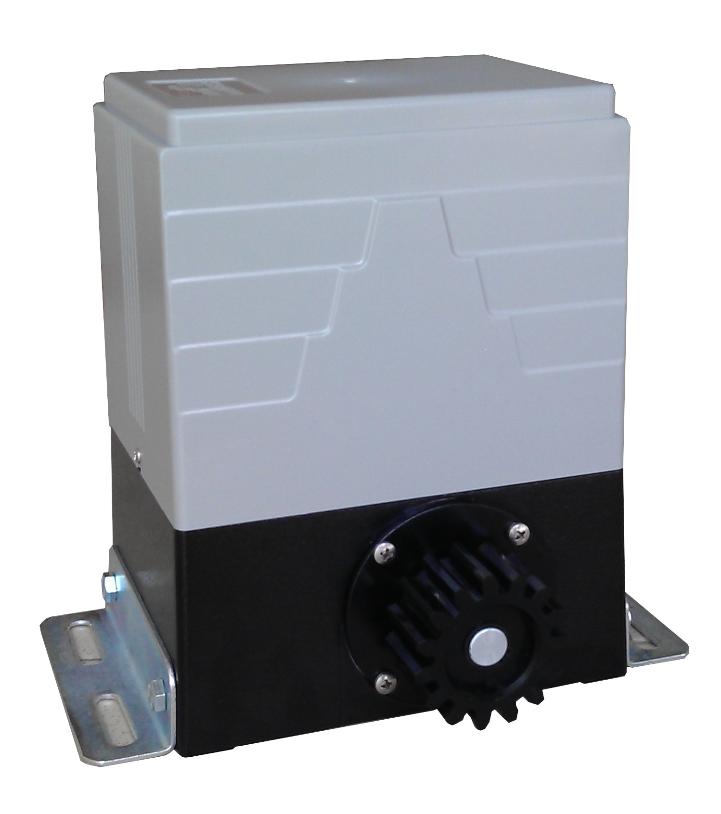

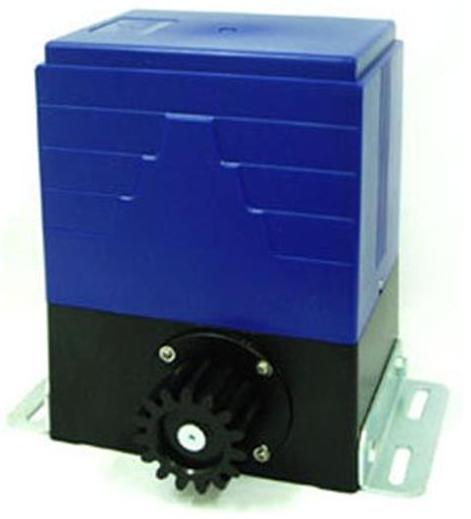

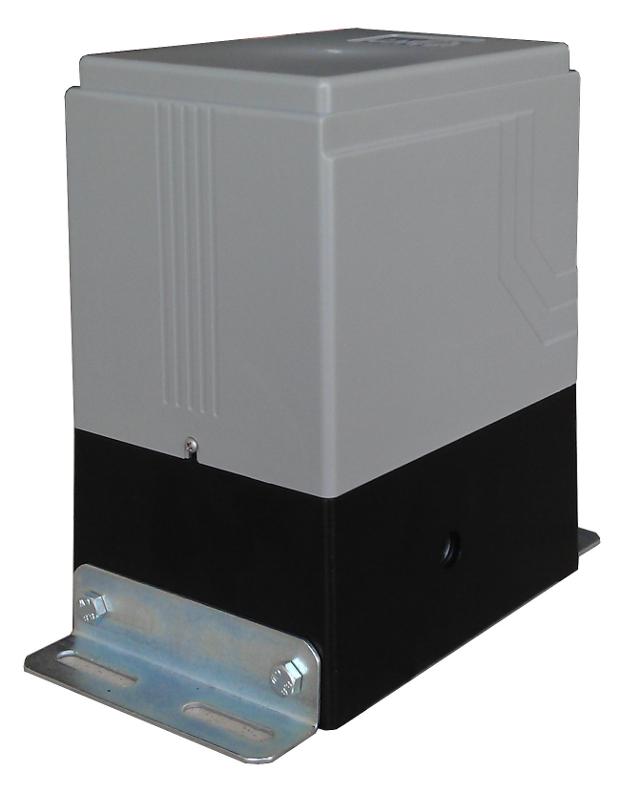

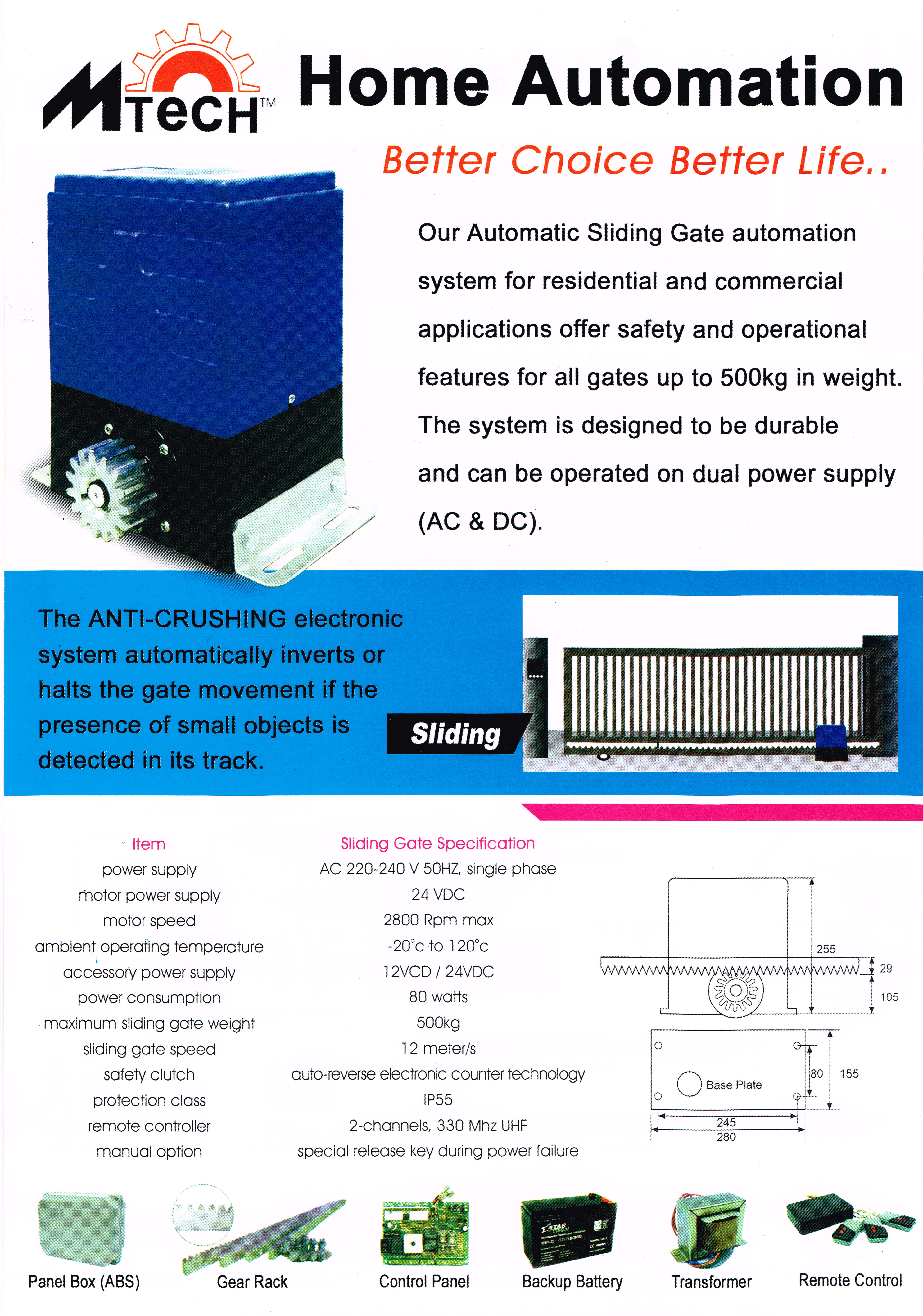

 Specification of motor  Sliding Gate V DC
 Power Supply AC 220-240V 50Hz, Single Phase
 Motor Power Supply 24 VDC
 Motor Rotation Speed 2800 Rpm
 Operating Ambint Temperature -20°c to 120°c
 Power Suplly For Acccessories 12Vdc / 24Vdc
 Absorb Power  80 Watts
 Max Weight Of Gate 600kg Force Adjustable
 Gate Speed  12 Meter/ Min
 Safety Clutch Electronic Counter Technology Auto-Reverse
 Protection Class IP55
 Remote Controller 2-Channels, 330Mhz UHF
 Manual Optional Special Released Key for Power Failure
